YSR650 with nitrous

[RepsolNSR]

this is great, any updates?



[btroxl]

Been bizzy in the shop on some other projects, but I'll have some progress on this SOON.

-Brian



[btroxl]

4/24/09 update

Today I cut out all the mounts I made for the NSR shock and made new mounts to install my linkage and fox shock. I have no clue if this is going to work or not. I'm having a hard time finding any info on how to figure out the geometry for the linkage. I do know that running the linkage will make the spring rate non linear.
If anyone has any thoughts or comments on this set up feel free to let me know.

-Brian



[shawnbassett26]

Looking good my friend!
~Shawn @ BMS



[Hooli]

This is all kinds of awesome. Well done!

It's projects like this, that get my attention rather than a squided-out bike that someone threw a Lockhart catalog at.



[btroxl]

Thanks for the compliments,

4/25/09
Rear linkage suspension is done ;D

Got everything figured out, made and welded in today. It seems like its going to work out OK.


-Brian



[Mickey_D100]

Are those braces that support the shock mounting points just tack welded for the time being? I'm no weld expert, but shouldn't those be welded all the way around?

Looks awesome! I really enjoy following build threads so far beyond the skills I have. And I love the ridiculousness of putting a 650 motor with nitrous in a tiny bike already prone to wheelies with much less power.



[btroxl]

Yes Evereything was just tacked together to make sure it was where I wanted it. Its all welded up now.

4/26/09

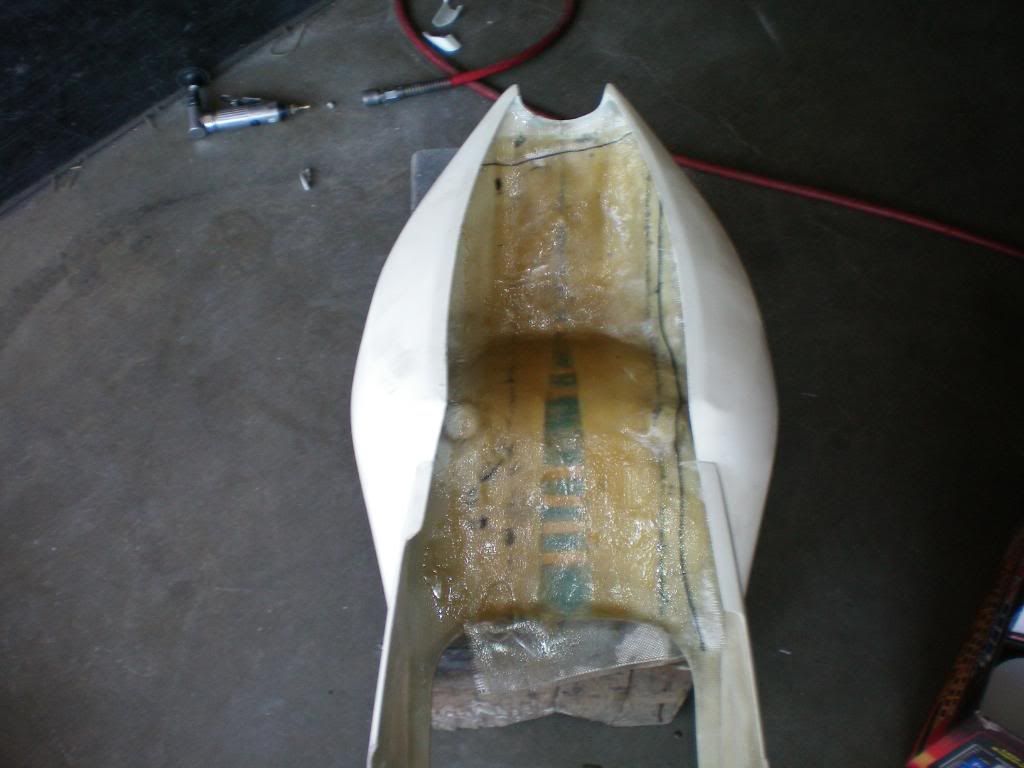

Today I was able to get my tail section fitted and fiberglassed back together, I still need to do the finishing fiberglass work but its together and strong. I also made my exhaust mount and fitted my muffler.



[geyev]

Wow..That thing is gonna be nuts....Subscribed!



[MattM]

Cool project!

BTW, what do you plan to do with the rear wheel alignment within the swing arm? It looks like you allowed for space on the drive side but none for the rear brake. Am I missing something?



[abstractor]

You are a f#$^kin sick nut, keep it up.



[btroxl]

BTW, what do you plan to do with the rear wheel alignment within the swing arm? It looks like you allowed for space on the drive side but none for the rear brake. Am I missing something?

I be doing the rear break soon, stay tuned. It will be ezer for me to just show pics of it when its done rather than trying to explain it.

-Brian



[SpeedyCorky]

so what is the gig with the front suspension?

looks like it only has like 1 inch of travel?!



[NEW2YSR50]

this thing is out right bad ass!!! Really cool project. How long till we get to hear that muffler? when do you expect to have this beast complete?



[btroxl]

I have no set date to have the bike running by. Its just a project I'm working on for fun. It would be nice to have it done before it starts getting cold out though.
As for the front forks they have 1 3/4" of travel at the moment but I might be putting a littel more length back into them before its all said and done.

-Brian



[btroxl]

5/1/09

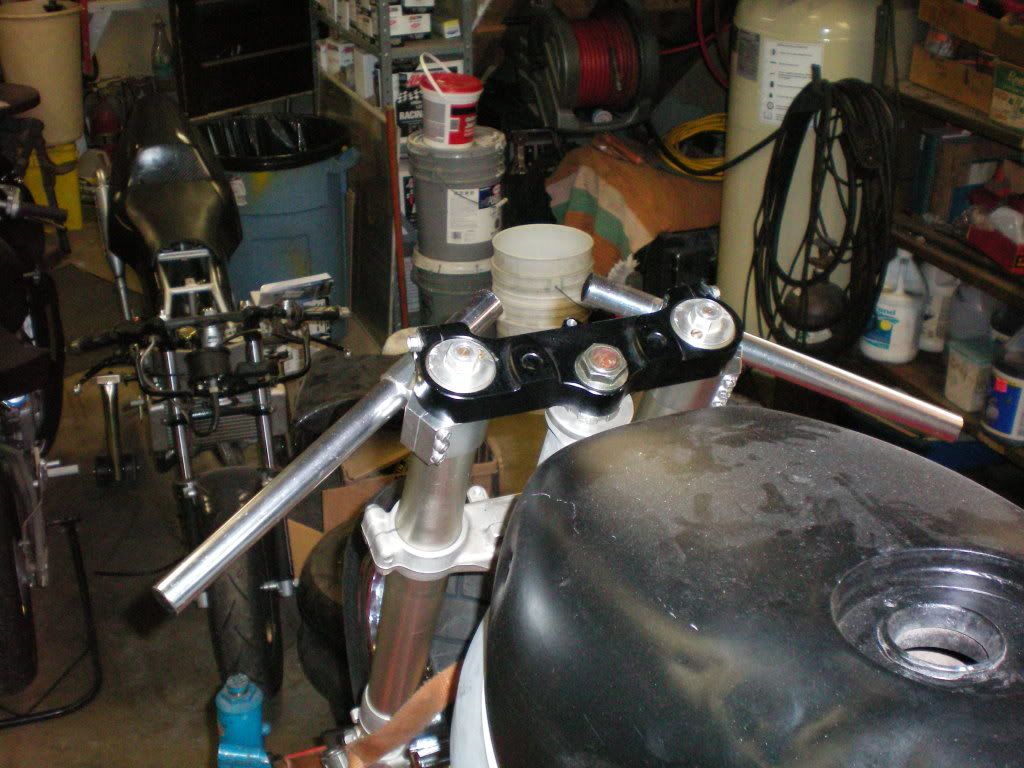

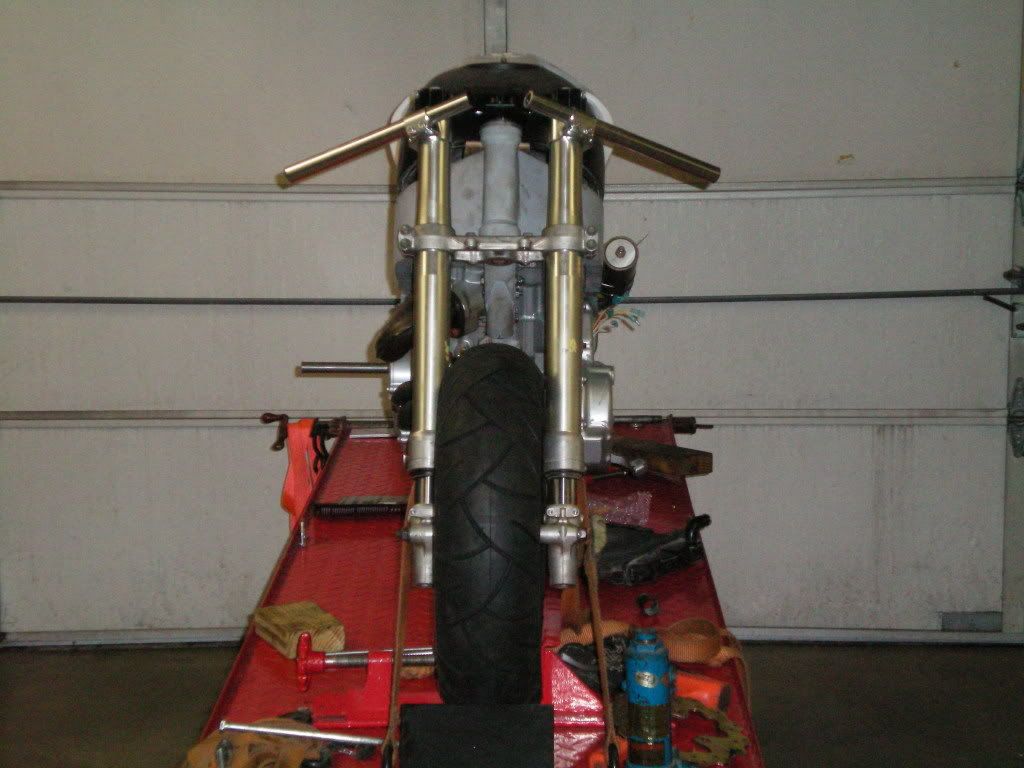

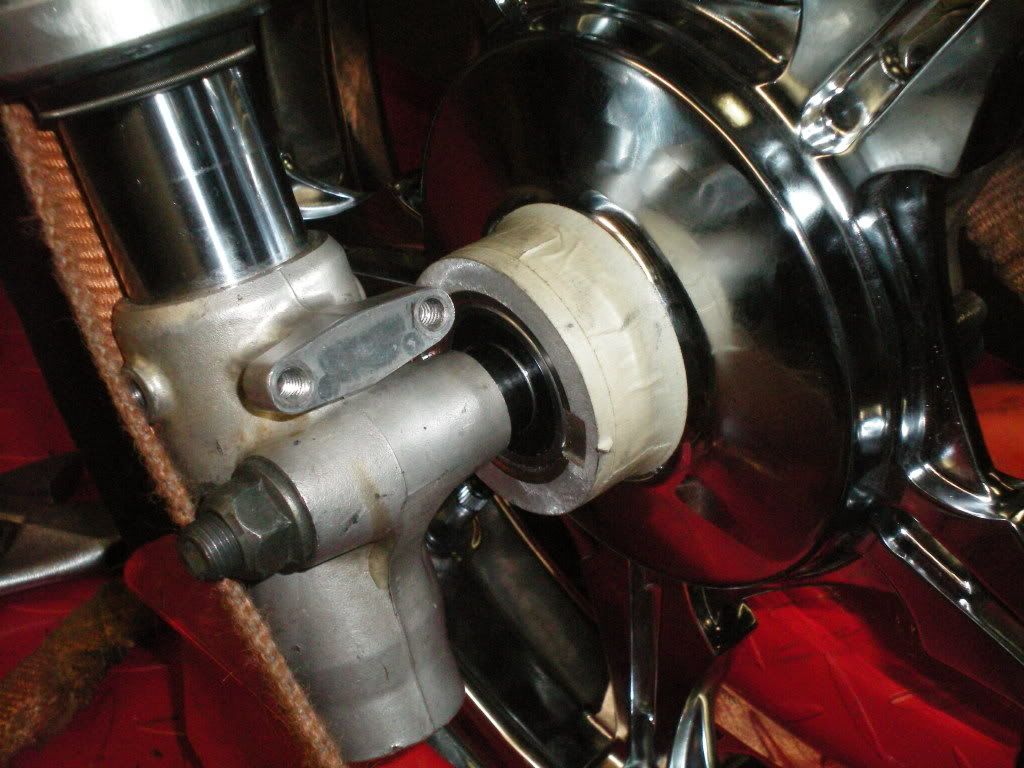

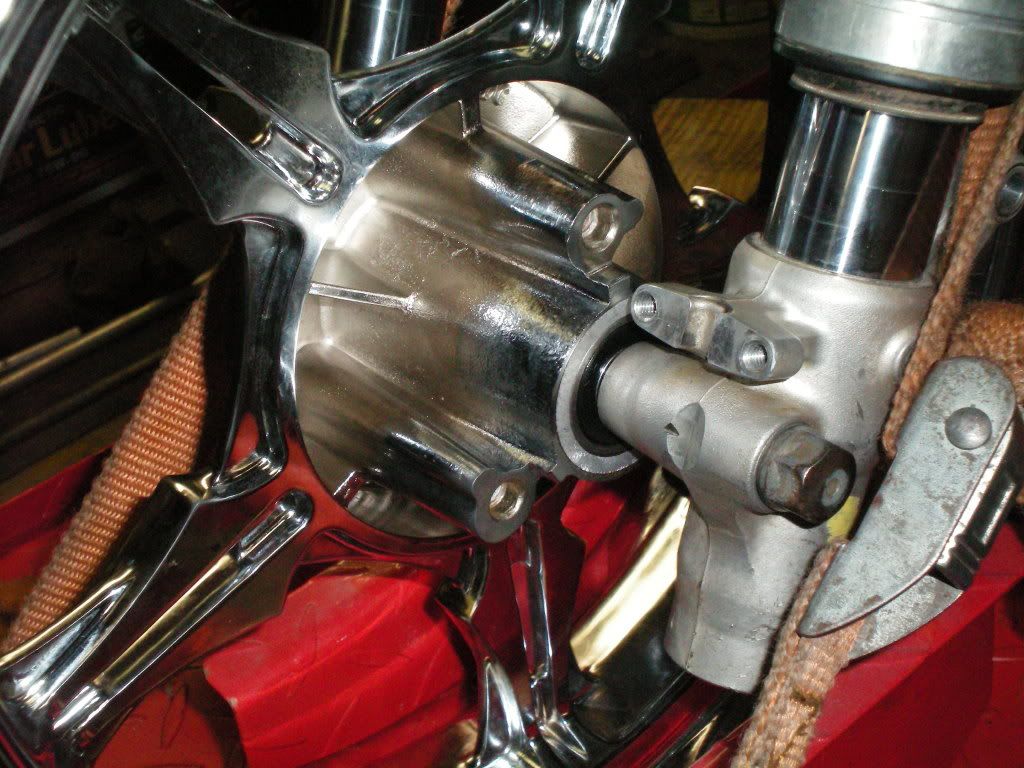

Today I did a Little machining on my front wheel and made some spacers for it. I also got my clip ons yesterday and installed them this evening.



[R6UCD]

That thing is SICKKKK



[btroxl]

5/2/09

Got my radiator mounted up and started mounting my upper.



[btroxl]

Today I made an upper fairing mount and started reworking the lower to fit. I had to cut it in half and the cut most of the left side away to fit around the motor. I'm in the process of re making the left side to fit then I'll start on the right side as its not going to require anywhere near as much work to fit.



[wilit]

Damn that is badass.
